Automate development builds with EAS Workflows

Add a build.yml

Inside .eas/workflows/, add a new file called build.yml. It uses the build job type with profile and platform parameters to create development builds for Android and iOS.

Add the following code to the build.yml file:

name: Development builds

jobs:
  build_android:
    name: Build Android
    type: build
    params:
      platform: android
      profile: development
  build_ios:
    name: Build iOS
    type: build
    params:
      platform: ios
      profile: development

We add two jobs: build_android and build_ios. Both are of type build with different parameters for platform and build profile.

The params key for each job includes:

• platform sets the target OS for the build (android or ios)
• profile specifies the build profile from our eas.json

Run the workflow manually

Let's run the workflow manually using the command:

Verify on the EAS dashboard

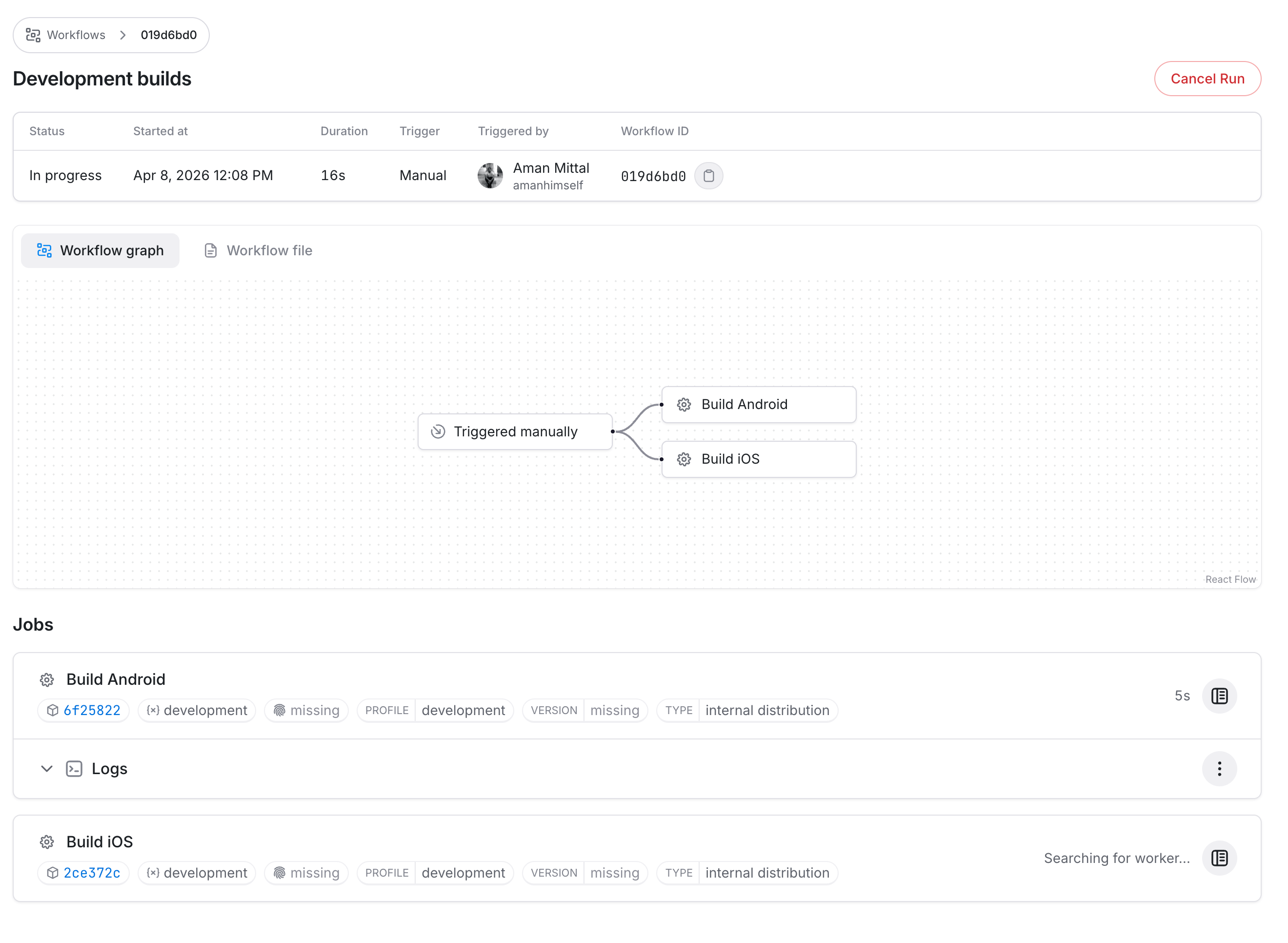

On the EAS dashboard, notice that it says "Triggered manually" under the Workflow graph tab. Any time the Trigger shows Manual, that means the workflow was started with the eas workflow:run command.

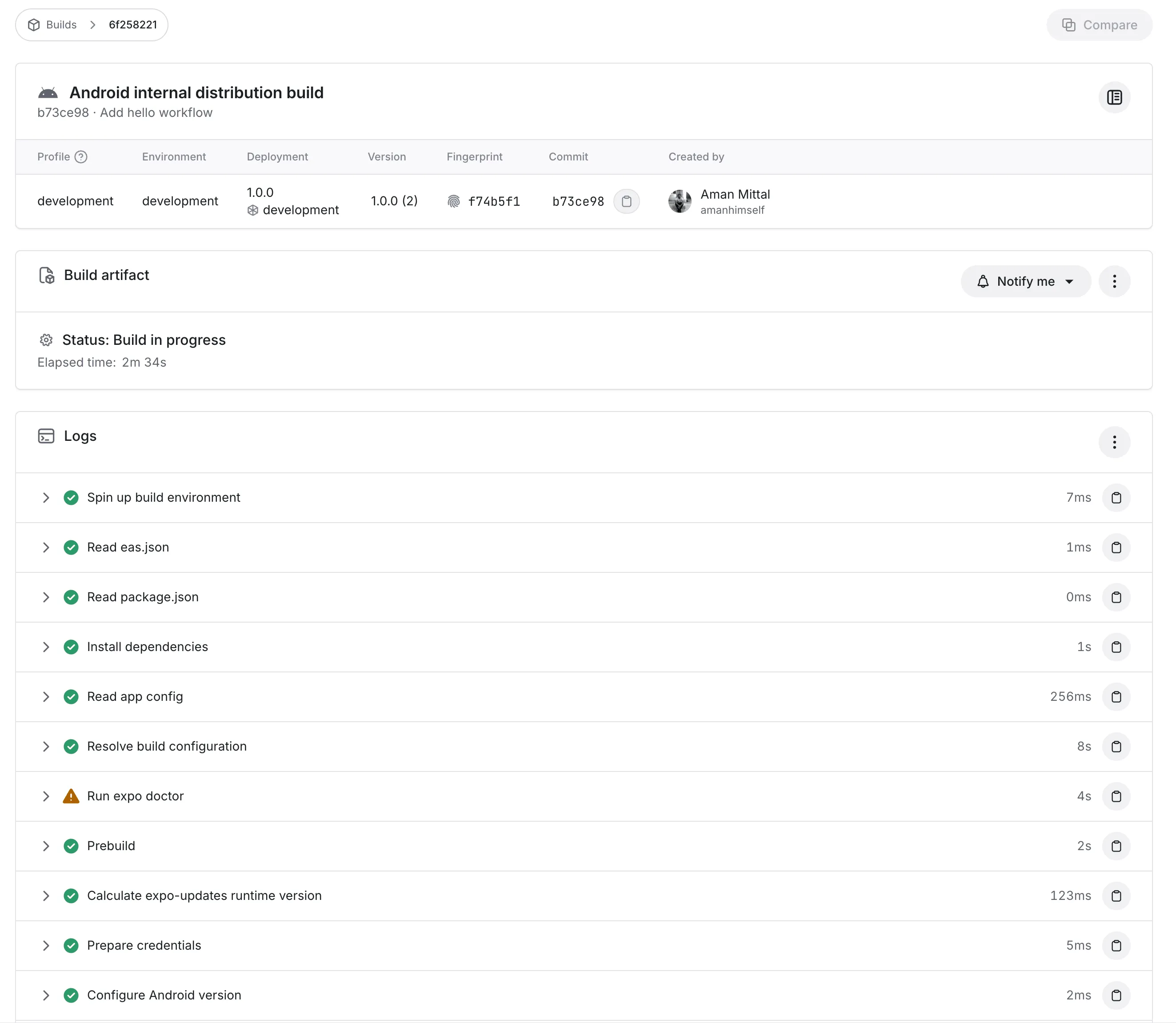

The logs for each build appear inside the workflow interface. Click a build's ID to open its EAS Build page.

Jobs without dependencies run in parallel by default in EAS Workflows. In the above workflow, since both build_android and build_ios jobs don't have any dependencies, they start at the same time.

Wait for both builds to complete before moving to the next step. Once they complete, we can use the Install or Open with Orbit buttons, or download from Artifacts to install on our device/emulator/simulator.

Add a fingerprint job

The fingerprint pre-packaged job hashes the project's native characteristics and outputs a fingerprint hash for each platform. The environment field tells EAS which environment variable configuration to use. Note that environment and profile can share the same name but refer to different things. profile points to a build profile in eas.json (how to build). environment points to environment variables configured on EAS (which values to inject at build time).

Update build.yml to add the fingerprint job before the build jobs:

name: Development builds

jobs:
  fingerprint:
    name: Fingerprint
    type: fingerprint
    environment: development
  build_android:
    # ...
  build_ios:
    # ...

The fingerprint job produces two outputs: android_fingerprint_hash and ios_fingerprint_hash. We use these hashes in the next step to check if a compatible build already exists.

Add get-build jobs

The get-build pre-packaged job checks if a build already exists for a given fingerprint hash and profile. If a matching build exists, it outputs a build_id. If not, build_id is empty.

In our workflow file, let's add get_android_build and get_ios_build jobs between fingerprint and the build jobs. Each one uses needs: [fingerprint] to wait for the fingerprint job to complete and access its output:

name: Development builds

jobs:
  fingerprint:
    # ...
  get_android_build:
    name: Check for existing Android build
    needs: [fingerprint]
    type: get-build
    params:
      fingerprint_hash: ${{ needs.fingerprint.outputs.android_fingerprint_hash }}
      profile: development
  get_ios_build:
    name: Check for existing iOS build
    needs: [fingerprint]
    type: get-build
    params:
      fingerprint_hash: ${{ needs.fingerprint.outputs.ios_fingerprint_hash }}
      profile: development
  build_android:
    # ...
  build_ios:
    # ...

In the above workflow, get-build jobs receive the fingerprint hash from the previous job using the ${{ needs.fingerprint.outputs.* }} expression syntax.

Add conditional builds

The if field controls whether a job runs. The expression ${{ !needs.get_android_build.outputs.build_id }} means: run a job only if get-build did not find a matching build. The ! is a negation operator. If a compatible build already exists for this fingerprint, the build job is skipped.

Let's update each build job to depend on its get-build job and add the if condition:

name: Development builds

jobs:
  fingerprint:
    # ...
  get_android_build:
    # ...
  get_ios_build:
    # ...
  build_android:
    name: Build Android
    needs: [get_android_build]
    if: ${{ !needs.get_android_build.outputs.build_id }}
    type: build
    params:
      platform: android
      profile: development
  build_ios:
    name: Build iOS
    needs: [get_ios_build]
    if: ${{ !needs.get_ios_build.outputs.build_id }}
    type: build
    params:
      platform: ios
      profile: development

Add a trigger and run the workflow

Let's add the on.push trigger to the workflow so it runs automatically on every push to main:

name: Development builds

on:
  push:
    branches: ['main']

jobs:
  fingerprint:
    name: Fingerprint
    type: fingerprint
    environment: development
  get_android_build:
    name: Check for existing Android build
    needs: [fingerprint]
    type: get-build
    params:
      fingerprint_hash: ${{ needs.fingerprint.outputs.android_fingerprint_hash }}
      profile: development
  get_ios_build:
    name: Check for existing iOS build
    needs: [fingerprint]
    type: get-build
    params:
      fingerprint_hash: ${{ needs.fingerprint.outputs.ios_fingerprint_hash }}
      profile: development
  build_android:
    name: Build Android
    needs: [get_android_build]
    if: ${{ !needs.get_android_build.outputs.build_id }}
    type: build
    params:
      platform: android
      profile: development
  build_ios:
    name: Build iOS
    needs: [get_ios_build]
    if: ${{ !needs.get_ios_build.outputs.build_id }}
    type: build
    params:
      platform: ios
      profile: development

Let's assume we made some TypeScript/JavaScript changes to our Expo project, like changing a button's color or updating the text on a screen. After doing so, we can push a commit to the main branch to trigger the workflow from our GitHub repository:

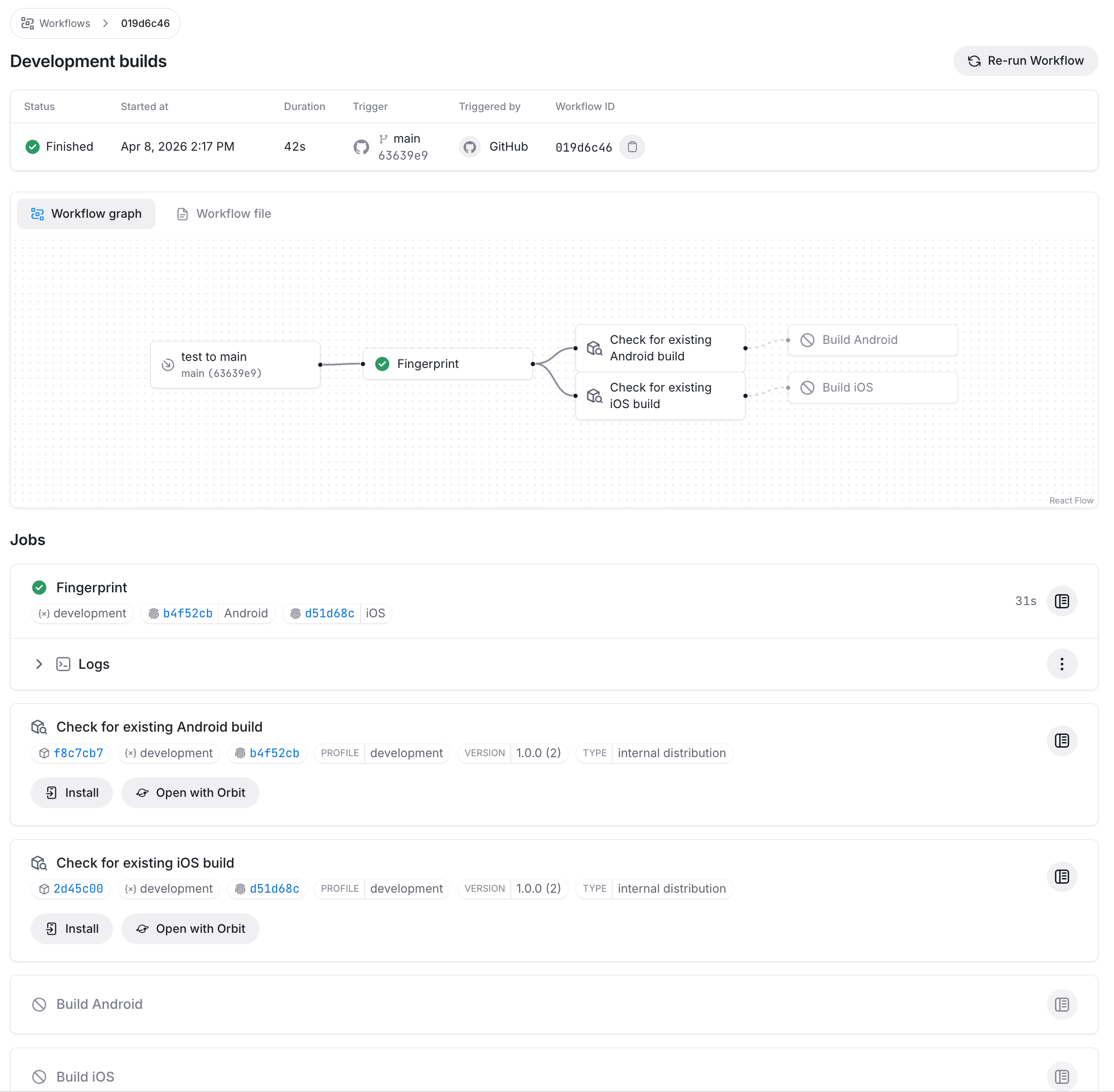

This triggers a new workflow that completes in seconds. On the EAS dashboard, both Android and iOS builds are skipped because a matching build already exists from the previous section.

We pull the latest from the main branch and run npx expo start. The existing development build picks up the JS changes.

Add a custom job for unit tests

In our build.yml workflow file, let's add a custom job that runs unit tests before the builds start:

name: Development builds

on:
  push:
    branches: ['main']

jobs:
  run_tests:
    name: Run unit tests
    steps:
      - uses: eas/checkout # Check out the repo
      - uses: eas/install_node_modules
      - run: npx jest --ci
  fingerprint:
    name: Fingerprint
    needs: [run_tests]
    type: fingerprint
    environment: development
  get_android_build:
    # ...
  get_ios_build:
    # ...
  build_android:
    # ...
  build_ios:
    # ...

The custom run_tests job does the following:

• uses: eas/checkout checks out the project source files from the GitHub repository. Custom jobs run on a new virtual machine, so the code is not available by default. This step is required before accessing any project files.
• uses: eas/install_node_modules installs dependencies using the package manager detected in the project (bun, npm, pnpm, or Yarn). This is needed before running any commands that depend on packages from node_modules, like Jest.
• run: npx jest --ci executes the test suite. The run key runs any shell command, similar to the echo command. The --ci flag tells Jest to run in CI mode, which skips watching for file changes and exits after running all tests.

Now, the fingerprint job has needs: [run_tests], so it only runs after the tests pass. If tests fail, EAS skips the rest of the workflow.

Trigger the workflow

Commit and push the updated workflow along with the test file to main:

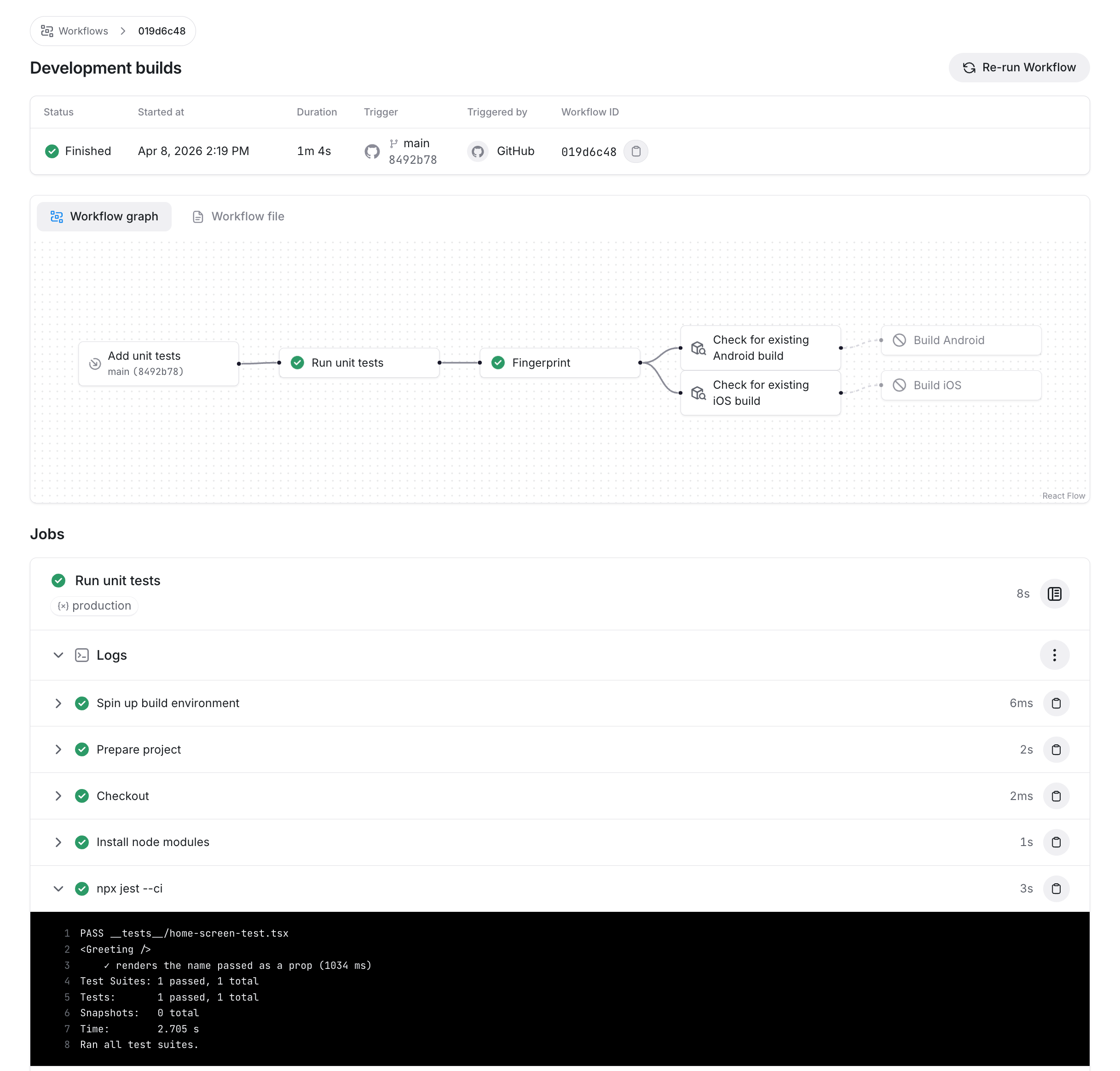

After triggering the workflow, open the EAS dashboard and notice the flow of the jobs inside our workflow.
