A set of platform components to build native-feeling UIs.

Android

iOS

Bundled version:

~0.1.1-alpha.1

@expo/ui is a set of native input components that allows you to build fully native interfaces with SwiftUI and Jetpack Compose.

This library is currently in alpha and subject to breaking changes. It is unavailable in the Expo Go app, and you should use development builds.

Installation

Terminal

- npx expo install @expo/ui

If you are installing this in an existing React Native app, make sure to install expo in your project.

Examples

BottomSheet component

import { BottomSheet } from '@expo/ui/BottomSheet';

<BottomSheet isOpen={isOpen} onIsOpenedChange={e => setIsOpened(e)}>
  <Text>Hello, world!</Text>
</BottomSheet>

Button component

import { Button } from '@expo/ui/Button';

<Button
  style={{ flex: 1 }}
  onPress={() => {
    setEditingProfile(true);
  }}>
  Edit profile
</Button>

ColorPicker component

import { ColorPicker } from '@expo/ui/ColorPicker';

<ColorPicker
  label="Select a color"
  selection={color}
  onValueChanged={setColor}
  style={{ width: 400, height: 200 }}
/>

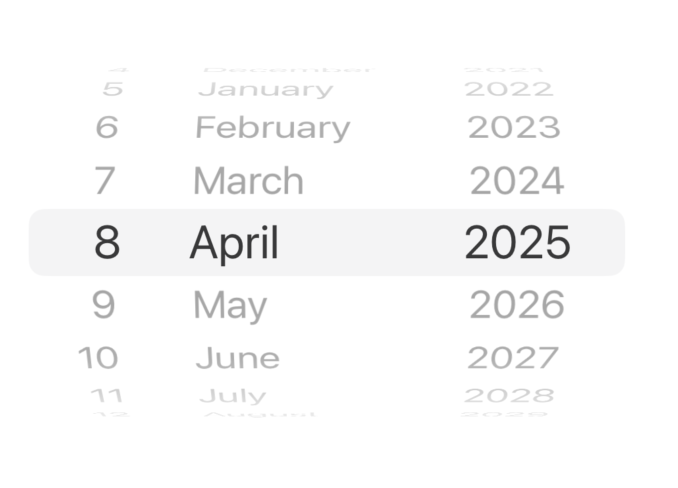

DateTimePicker component (date variant)

import { DateTimePicker } from '@expo/ui/DateTimePicker';

<DateTimePicker
  onDateSelected={date => {
    setSelectedDate(date);
  }}
  displayedComponents='date'
  initialDate={selectedDate.toISOString()}
  iosVariant='wheel'
  androidVariant='picker'
/>

Gauge component

import { Gauge } from "@expo/ui/Gauge";

<Gauge
  max={{ value: 1, label: '1' }}
  min={{ value: 0, label: '0' }}
  current={{ value: 0.5 }}
  color={[
    PlatformColor('systemRed'),
    PlatformColor('systemOrange'),
    PlatformColor('systemYellow'),
    PlatformColor('systemGreen'),
  ]}
  type="circular"
/>

LinearProgress component

import { LinearProgress } from '@expo/ui/LinearProgress';

<LinearProgress progress={0.5} style={{ width: 300 }} />

Picker component (segmented variant)

import { Picker } from '@expo/ui/Picker';

<Picker
  options={['$', '$$', '$$$', '$$$$']}
  selectedIndex={selectedIndex}
  onOptionSelected={({ nativeEvent: { index } }) => {
    setSelectedIndex(index);
  }}
/>

Picker component (wheel variant) (iOS only)

import { Picker } from '@expo/ui/Picker';

<Picker
  options={['$', '$$', '$$$', '$$$$']}
  selectedIndex={selectedIndex}
  onOptionSelected={({ nativeEvent: { index } }) => {
    setSelectedIndex(index);
  }}
  variant="wheel"
  style={{
    height: 100,
  }}
/>

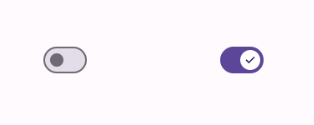

Switch component

import { Switch } from '@expo/ui/Switch';

<Switch
  checked={checked}
  onValueChange={checked => {
    setChecked(checked);
  }}
  label="Play music"
/>

Switch component (checkbox variant)

import { Switch } from '@expo/ui/Switch';

<Switch
  checked={checked}
  onValueChange={checked => {
    setChecked(checked);
  }}
  label="Play music"
  variant="checkbox"
/>

TextInput component

import { TextInput } from '@expo/ui/TextInput';

<TextInput autocorrection={false} defaultValue="A single line text input" onChangeText={setValue} />

Components

`BottomSheet`

Only for:

iOS

Type: React.Element<BottomSheetProps>

Renders a native BottomSheet component.

BottomSheetProps

`children`

Only for:

iOS

Type: any

The children of the BottomSheet component.

`isOpened`

Only for:

iOS

Type: boolean

Whether the BottomSheet is opened.

`onIsOpenedChange`

Only for:

iOS

Type: (isOpened: boolean) => void

Callback function that is called when the BottomSheet is opened.

`style`

Only for:

iOS

Optional • Type: StyleProp<ViewStyle>

Optional styles to apply to the BottomSheet component.

`Button`

Type: React.Element<ButtonProps>

Displays a native button component.

ButtonProps

`children`

Type: string

The text to display inside the button.

`color`

Optional • Type: string

Button color.

`disabled`

Optional • Type: boolean

Disabled state of the button.

`elementColors`

Only for:

Android

Optional • Type: ButtonElementColors

Colors for button's core elements.

`onPress`

Optional • Type: () => void

A callback that is called when the button is pressed.

`role`

Only for:

iOS

Optional • Type: ButtonRole

Indicated the role of the button.

`style`

Optional • Type: StyleProp<ViewStyle>

Additional styles to apply to the button.

`systemImage`

Optional • Type:

{
  android: MaterialIcon,
  ios: string
}

A string describing the system image to display in the button. Uses Material Icons on Android and SF Symbols on iOS.

`variant`

Optional • Type: ButtonVariant

The button variant.

`CircularProgress`

Type: React.Element<CircularProgressProps>

Renders a CircularProgress component.

CircularProgressProps

`color`

Optional • Type: ColorValue

Progress color.

`elementColors`

Only for:

Android

Optional • Type: ProgressElementColors

Colors for switch's core elements.

`progress`

Optional • Literal type:

The current progress value of the slider. This is a number between 0 and 1.

Acceptable values are: number | null

`style`

Optional • Type: StyleProp<ViewStyle>

Custom styles for the progress component.

`ColorPicker`

Only for:

iOS

Type: React.Element<ColorPickerProps>

Renders a ColorPicker component using SwiftUI.

ColorPickerProps

`label`

Only for:

iOS

Optional • Type: string

A label displayed on the ColorPicker.

`onValueChanged`

Only for:

iOS

Optional • Type: (value: string) => void

Callback function that is called when a new color is selected.

`selection`

Only for:

iOS

Literal type:

The currently selected color in the format #RRGGBB or #RRGGBBAA.

Acceptable values are: string | null

`style`

Only for:

iOS

Optional • Type: StyleProp<ViewStyle>

Optional style to apply to the ColorPicker component.

`supportsOpacity`

Only for:

iOS

Optional • Type: boolean

Whether the color picker should support opacity.

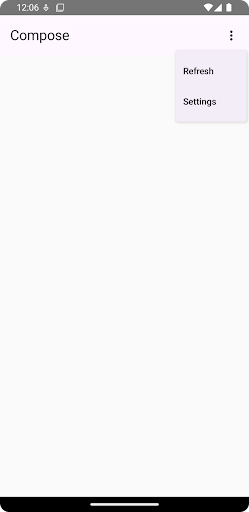

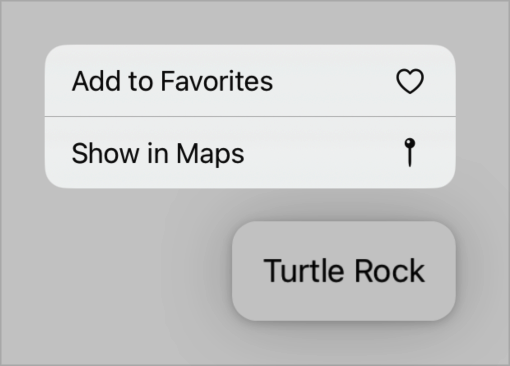

`ContextMenu`

Type: React.Element<ContextMenuProps>

ContextMenu allows you to create a context menu, which can be used to provide additional options to the user.

There are some platform-specific differences in the behavior of the context menu:

On Android, the expansion of the context menu is controlled by the expanded prop. iOS, does not allow for manual control of the expansion state.
On iOS, the context menu can be triggered by a single press or a long press. The activationMethod prop allows you to choose between these two options.
Android does not support nesting in the context menu. All the submenus will be flat-mapped into a single level with multiple sections. The title prop of the Button, which opens the submenu on iOS will be used as a section title.
Android does not support showing a Picker element in the context menu.

Props of the ContextMenu component.

ContextMenuProps

`activationMethod`

Only for:

iOS

Optional • Type: ActivationMethod

Determines how the context menu will be activated.

`children`

Type: ReactNode

The contents of the submenu are used as an anchor for the context menu. The children will be wrapped in a pressable element, which triggers opening of the context menu.

`color`

Only for:

Android

Optional • Type: string

The color of the container holding the context menu items.

`style`

Optional • Type: StyleProp<ViewStyle>

Optional styles to apply to the ContextMenu.

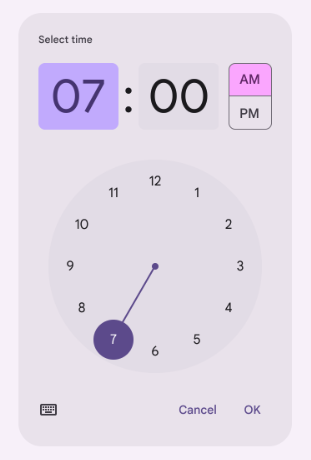

`DateTimePicker`

Type: React.Element<DateTimePickerProps>

Renders a DateTimePicker component.

DateTimePickerProps

`androidVariant`

Only for:

Android

Optional • Type: AndroidVariant • Default: 'picker'

The variant of the picker, which determines its appearance and behavior.

`color`

Optional • Type: string

The tint color to use on the picker elements.

`displayedComponents`

Optional • Type: DisplayedComponents • Default: 'date'

The components that the picker should display. On Android, you can have a picker that selects just the date or just the time. dateAndTime is only available on iOS and will result in a date picker on Android. On iOS, you can have a picker that selects both date and time.

`initialDate`

Optional • Literal type:

The initial date to display on the picker.

Acceptable values are: string | null

`iosVariant`

Only for:

iOS

Only for:

iOS

Optional • Type: GaugeType

The type of Gauge.

`Items`

Type: React.Element<{ children: ReactNode }>

Items visible inside the context menu. Pass input components as immidiate children of the tag. Button, Switch and Submenu components are supported on both Android and iOS. The Picker component is supported only on iOS. Remember to use components from the @expo/ui library.

`Label`

Only for:

iOS

Type: React.Element<LabelProps>

Renders a native label view, which could be used in a List or Section.

LabelProps

`color`

Only for:

iOS

Optional • Type: string

The color of the label icon.

`style`

Only for:

iOS

Optional • Type: StyleProp<ViewStyle>

Additional styles to apply to the label.

`systemImage`

Only for:

iOS

Optional • Type: string

The name of the SFSymbol to be displayed in the label.

`title`

Only for:

iOS

Optional • Type: string

The title text to be displayed in the label.

`LinearProgress`

Type: React.Element<LinearProgressProps>

Renders a LinearProgress component.

LinearProgressProps

`color`

Optional • Type: ColorValue

Progress color.

`elementColors`

Only for:

Android

Optional • Type: ProgressElementColors

Colors for switch's core elements.

`progress`

Optional • Literal type:

The current progress value of the slider. This is a number between 0 and 1.

Acceptable values are: number | null

`style`

Optional • Type: StyleProp<ViewStyle>

Custom styles for the progress component.

`List`

Only for:

Type: React.Element<PickerProps>

Displays a native picker component. Depending on the variant it can be a segmented button, an inline picker, a list of choices or a radio button.

PickerProps

`color`

Optional • Type: string

Picker color. On iOS it only applies to the 'menu' variant.

`elementColors`

Only for:

Android

Optional • Type: PickerElementColors

Colors for picker's core elements.

`label`

Only for:

iOS

Optional • Type: string

A label displayed on the picker when in 'menu' variant inside a form section on iOS.

`onOptionSelected`

Optional • Type:

(event: {
  nativeEvent: {
  index: number,
  label: string
}
}) => void

Callback function that is called when an option is selected.

`options`

Type: string[]

An array of options to be displayed in the picker.

`selectedIndex`

Literal type:

The index of the currently selected option.

Acceptable values are: number | null

`style`

Optional • Type: StyleProp<ViewStyle>

Optional style to apply to the picker component.

`variant`

Optional • Literal type: string • Default: 'segmented'

The variant of the picker, which determines its appearance and behavior. The 'wheel', 'inline', 'palette' and 'menu' variants are iOS only, the 'radio' variant is Android only. The 'inline' variant can only be used inside sections or lists. The 'palette' variant displays differently inside menus.

`Preview`

Only for:

iOS

Type: React.Element<{ children: ReactNode }>

The component visible above the menu when it is opened.

`Section`

Only for:

iOS

Type: React.Element<SectionProps>

Section component uses the native Section component. It has no intrinsic dimensions, so it needs explicit height or flex set to display content (like ScrollView).

SectionProps

`children`

Only for:

iOS

Type: any

`style`

Only for:

iOS

Optional • Type: StyleProp<ViewStyle>

`title`

Only for:

iOS

Optional • Type: string

On iOS, section titles are usually capitalized for consistency with platform conventions.

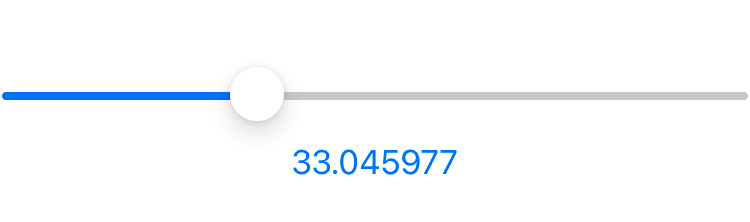

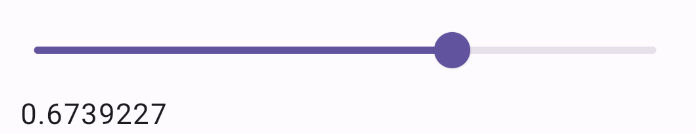

`Slider`

Type: React.Element<SliderProps>

SliderProps

`color`

Optional • Type: string

Slider color.

`elementColors`

Only for:

Android

Optional • Type: SliderElementColors

Colors for slider's core elements.

`max`

Optional • Type: number • Default: 1

The maximum value of the slider. Updating this value does not trigger callbacks if the current value is above max.

`min`

Optional • Type: number • Default: 0

The minimum value of the slider. Updating this value does not trigger callbacks if the current value is below min.

`onValueChange`

Optional • Type: (value: number) => void

Callback triggered on dragging along the slider.

`steps`

Optional • Type: number • Default: 0

The number of steps between the minimum and maximum values, 0 signifies infinite steps.

`style`

Optional • Type: StyleProp<ViewStyle>

Custom styles for the slider component.

`value`

Optional • Type: number • Default: 0

The current value of the slider.

`Submenu`

Type: React.Element<SubmenuProps>

The Submenu component is used to create a nested context menu. Submenus can be infinitely nested. Android does not support nesting in the context menu. All the submenus will be flat-mapped into a single level with multiple titled sections.

Props of the Submenu component.

SubmenuProps

`button`

Type: ReactElement<ButtonProps>

The button that will be used to expand the submenu. On Android the text prop of the Button will be used as a section title.

`children`

Type: ReactNode

Children of the submenu. Only Button, Switch, Picker and Submenu elements should be used.

`Switch`

Type: React.Element<SwitchProps>

SwitchProps

`color`

Optional • Type: string

Picker color. On iOS, it only applies to the menu variant.

`label`

Only for:

iOS

Optional • Type: string

Label for the switch.

On Android, the label has an effect only when the Switch is used inside a ContextMenu.

`onValueChange`

Optional • Type: (value: boolean) => void

Callback function that is called when the checked state changes.

`style`

Optional • Type: StyleProp<ViewStyle>

Optional style for the switch component.

`value`

Type: boolean

Indicates whether the switch is checked.

`variant`

Optional • Literal type: string • Default: 'switch'

Type of the switch component. Can be 'checkbox', 'switch', or 'button'. The 'button' style is iOS only.

Acceptable values are: 'checkbox' | 'switch' | 'button'

`TextInput`

Type: React.Element<TextInputProps>

Renders a TextInput component.

TextInputProps

`autocorrection`

Optional • Type: boolean • Default: true

If true, autocorrection is enabled.

`defaultValue`

Optional • Type: string

Initial value that the TextInput displays when being mounted. As the TextInput is an uncontrolled component, change the key prop if you need to change the text value.

`keyboardType`

Optional • Literal type: string • Default: default

Determines which keyboard to open. For example, 'numeric'.

Types that work on both platforms:

default
numeric
email-address
phone-pad
decimal-pad
ascii-capable
url

Types that only work on Android:

password
password-numeric

Types that only work on iOS:

numbers-and-punctuation
name-phone-pad
twitter
web-search
ascii-capable-number-pad

`multiline`

Optional • Type: boolean

If true, the text input can be multiple lines. While the content will wrap, there's no keyboard button to insert a new line.

`numberOfLines`

Optional • Type: number • Default: undefined, which means unlimited lines.

The number of lines to display when multiline is set to true. If the number of lines in the view is above this number, the view scrolls.

`onChangeText`

Type: (value: string) => void

A callback triggered when user types in text into the TextInput.

`style`

Optional • Type: StyleProp<ViewStyle>

Additional styles to apply to the TextInput.

`Trigger`

Type: React.Element<{ children: ReactNode }>

The component visible all the time that triggers the menu when tapped or long-pressed.

Types

`ActivationMethod`

Literal Type: string

Activation method of the context menu.

singlePress: The context menu is opened with a single tap. Does not isolate the content.
longPress: The context menu is opened with a long press. On iOS additionally Highlights the content by blurring the background.

Acceptable values are: 'singlePress' | 'longPress'

`AndroidVariant`

Literal Type: string

Acceptable values are: 'picker' | 'input'

`ButtonElementColors`

Only for:

Android

Colors for button's core elements.

Property	Type	Description
containerColor(optional)	`string`	-
contentColor(optional)	`string`	-
disabledContainerColor(optional)	`string`	-
disabledContentColor(optional)	`string`	-

`ButtonRole`

Only for:

iOS

Literal Type: string

The role of the button.

default - The default button role.
cancel - A button that cancels the current operation.
destructive - A button that deletes data or performs a destructive action.

Acceptable values are: 'default' | 'cancel' | 'destructive'

`ButtonVariant`

Literal Type: string

The built-in button styles available on iOS and Android.

Common styles:

default - The default system button style.
bordered - A button with a light fill. On Android, equivalent to FilledTonalButton.
borderless - A button with no background or border. On Android, equivalent to TextButton.

Android-only styles:

outlined - A button with an outline.
elevated - A filled button with a shadow.

Apple-only styles:

borderedProminent - A bordered button with a prominent appearance.
plain - A button with no border or background and a less prominent text. macOS-only styles:
accessoryBar - A button style for accessory bars.
accessoryBarAction - A button style for accessory bar actions.
card - A button style for cards.
link - A button style for links.

`DisplayedComponents`

Literal Type: string

Acceptable values are: 'date' | 'hourAndMinute' | 'dateAndTime'

`GaugeType`

Only for:

iOS

Literal Type: string

The type of Gauge.

Acceptable values are: 'default' | 'circular' | 'circularCapacity' | 'linear' | 'linearCapacity'

`IOSVariant`

Literal Type: string

Acceptable values are: 'wheel' | 'automatic' | 'graphical' | 'compact'

`ListStyle`

Literal Type: string

`PickerElementColors`

Only for:

Android

Colors for picker's core elements.

Property	Type	Description
activeBorderColor(optional)	`string`	-
activeContainerColor(optional)	`string`	-
activeContentColor(optional)	`string`	-
disabledActiveBorderColor(optional)	`string`	-
disabledActiveContainerColor(optional)	`string`	-
disabledActiveContentColor(optional)	`string`	-
disabledInactiveBorderColor(optional)	`string`	-
disabledInactiveContainerColor(optional)	`string`	-
disabledInactiveContentColor(optional)	`string`	-
inactiveBorderColor(optional)	`string`	-
inactiveContainerColor(optional)	`string`	-
inactiveContentColor(optional)	`string`	-

`ProgressElementColors`

Property	Type	Description
trackColor(optional)	`ColorValue`	Only for: Android Track color.

`SliderElementColors`

Only for:

Android

Colors for slider's core elements.

Property	Type	Description
activeTickColor(optional)	`string`	-
activeTrackColor(optional)	`string`	-
inactiveTickColor(optional)	`string`	-
inactiveTrackColor(optional)	`string`	-
thumbColor(optional)	`string`	-

`ValueOptions`

Only for:

iOS

Value options for the Gauge component.

Property	Type	Description
color(optional)	`ColorValue`	Color of the label.
label(optional)	`string`	Label of the element.
value	`number`	Value of the element.
